Black ESD JEDEC Matrix Trays for Integrated Circuit
The Semiconductor product are usually electrostatic discharge sensitive devices (ESDS), which requires specific precautions in terms of transport and storage. On integrated circuits, the discharge of charged objects caused by human touch or processing tools may generate high current, which can damage or even destroy sensitive semiconductor structures. Therefore, anti-static protection measures must be taken to prevent contact with live parts and prevent static electricity from damaging the product. The ESD JEDEC tray is therefore designed to avoid this phenomenon.

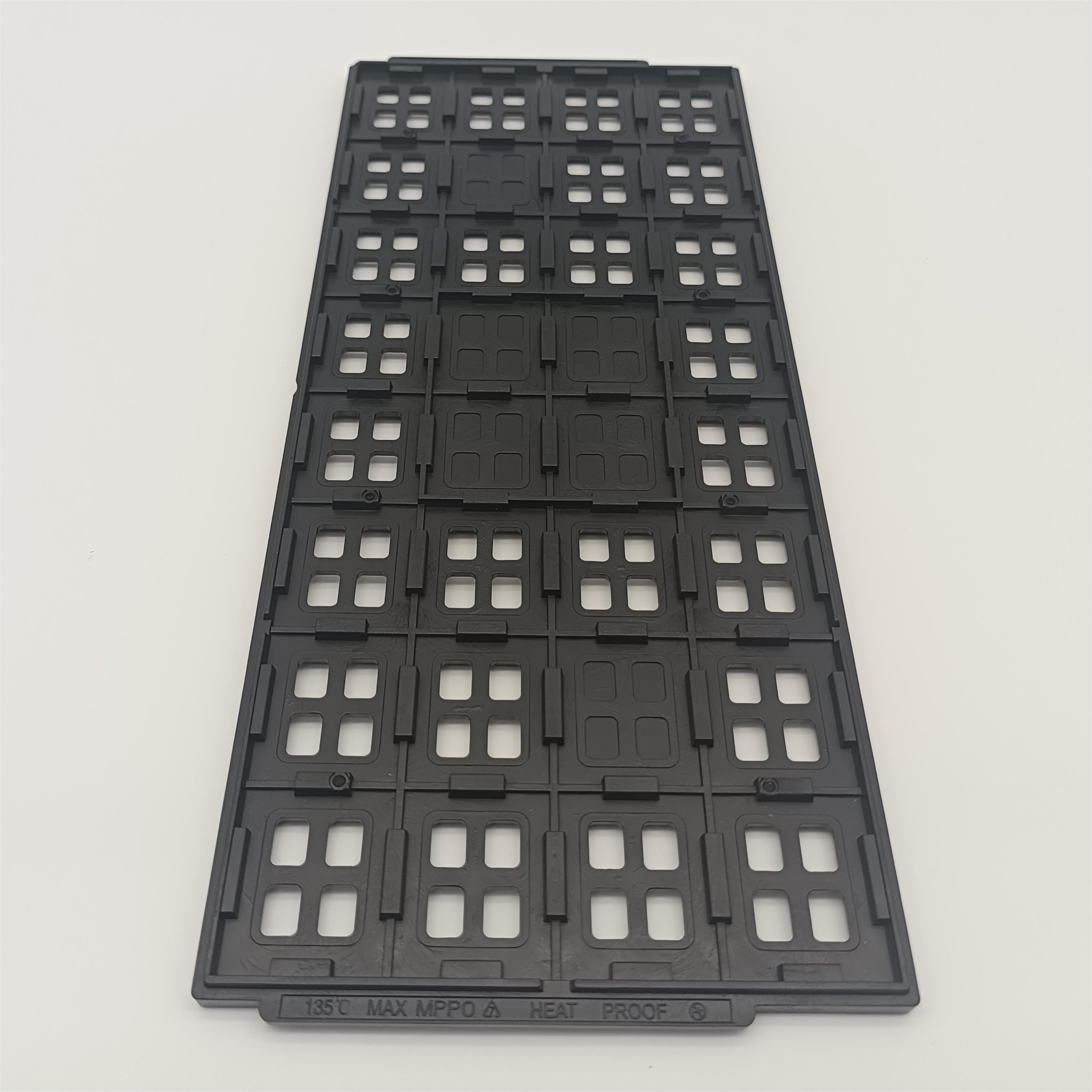

The Details of the HN22045 JEDEC Matrix Tray
The HN22045 JEDEC tray is mainly made of a common industrial material MPPO,which has excellent anti-static and high temperature resistance.The maximum baking temperature of the tray is 135 °C, and when the temperature is exceeded, the tray size will change. Different raw materials determine the high temperature resistance of the tray, and customers can choose according to their own requirements. Such as color, anti-static properties, dimensional stability and maximum temperature rating.
The JEDEC tray is designed as a 4 × 8 matrix and the spacing between the pockets is 38.2*32.1mm, which allows the automation equipment to position the product more accurately. Regarding the production of tray, our company is equipped with advanced mold processing and injection molding equipment, as well as a variety of testing equipment to ensure product quality. Our designed trays comply with JEDEC international standards and have strong versatility. It can provide protection for a variety of packaged products while reducing transportation costs.
| Outline Line Size |
322.6*135.9*7.62mm |
Brand |
Hiner-pack |
| Model |
HN22045 |
Package Type |
Die |
| Cavity Size |
33.53*27.37*3.4 |
Matrix QTY |
4*8=32PCS |
| Material |
MPPO |
Flatness |
MAX 0.76mm |
| Color |
Black |
Place of origin |
CHINA |
| Resistance |
1.0x10e4-1.0x10e11Ω |
Certificate |
ROHS SGS |
Application of the HN22045 Matrix Tray
Semiconductor Industry Electronics Industry
Solar Photovoltaic Industry Medical Industry
| Material |
Bake Temperature |
Surface Resistance |
| PPE |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber |
Max 180°C |
1.0*10E4Ω~1.0*10E11Ω |
| IDP Color |
85°C |
1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized |
Service
1.We offer ESD total Solution to Customer, Many other related product available if needed.
2.OEM is welcomed or design as customer request.
3.The best & professional sale services.
4.Honest but competitive price and Quality assured quotation.
5.100% QC inspection before shipment.
FAQ
Q1: Are You Manufacturer or Trade Company?
We are the 100% Manufacturer specialized in packaging over 10 years with 1500 square meters workshop area, located in Shenzhen China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirement.
Q4: How can I get the quotation of the custom products ?
Let us know the size of your IC or component thickness,and then we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Yes, the fee sample in stock can be sent, but the shipping fee should be paid by yourself.
Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
