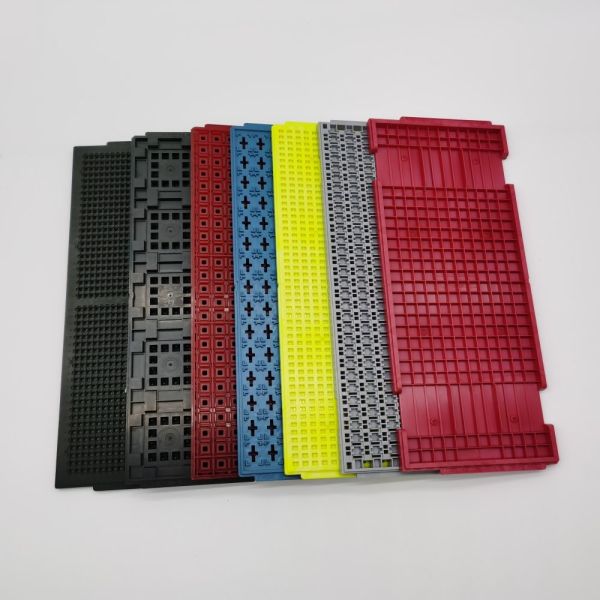

The design of the structure and shape in line with JEDEC international standards can also perfectly meet the requirements of the carriing components or IC of the tray, carriing function to meet the requirements of the automatic feeding system, to achieve the modernization of loading, improve work efficiency.
The tray has a 45-degree chamfer to provide the visual indicator of Pin 1 orientation of the IC and prevent the stack of errors, reduce the possibility of workers making mistakes and maximize the protection of the chip.
Providing a variety of packaging IC design solutions based on your chip, the 100% custom tray is not only suitable for storing IC but also better protect the chip storage.We have designed a lot of packaging way, which also contains common BGA, FBGA, LGAQFN, QFP, PGA, TQFP, LQFP, SoC and SiP, etc.We can provide custom service for all packaging methods of chip tray.
| Material |
Bake Temperature |
Surface Resistance |
| PPE |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber |
Max 180°C |
1.0*10E4Ω~1.0*10E11Ω |
| IDP Color |
85°C |
1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized |
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
